ID: com.hkonstas.andmcu
Version: 1.10
Size: 0.9 Mb

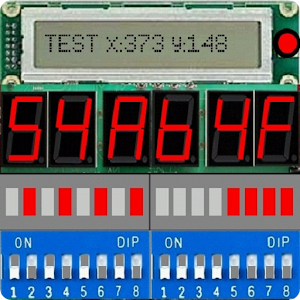

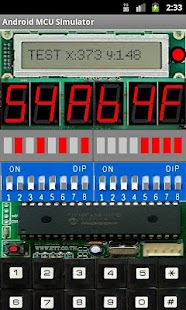

MCU Prototype Board Simulator Screenshots
How to install MCU Prototype Board Simulator apk for android
- For Android 4.0 or higher:Please to Settings, look down to Security, and select Unknown sources. Choosing this choice will enable to install apps download from the internet.
- For devices running on lower Android 4.0:
Please go to Settings - open the Applications option, and select Unknown sources, click OK on the popup alert.
MCU Prototype Board Simulator Details
The MCU simulator for Android OS runs Assembly Language code similar to the 68705 MCU on a simulated on-screen prototype board. Great for embedded applications hobbyists, students, teachers or anyone who likes to experiment with Micro-controller CPUs and electronic prototype boards. It's fun for learning Assembly language as well!AndMCU simulates both software and hardware. As on a real prototype board, your ASM code must configure the MCU I/O ports to control the hardware connected to it, such as lighting up segments on the digits, or reading keystrokes from the keypad or dip-switches.
You can use the simple built-in text editor or any Android text editor of your choice to write your assembly code and then load it into AndMCU to run it.
The built-in assembler has many useful directives such as step-by-step trace mode, break-points, dumping memory contents to an HTML file, adjusting the CPU speed and auto-running the loaded code. It supports the following opcodes (subset of the 68705 MCU instruction set):
NOP,CLC,CLI,SEC,SEI,STOP,SWI,TAX,TXA,LDA,LDX,STA,STX, ADD,ADC,CLR,CLRA,CLRX,DEC,DECA,DECX,INC,INCA,INCX,SUB,SBC,
AND,CMP,COM,COMA,COMX,CPX,EOR,LSL,LSLA,LSLX,LSR,LSRA,LSRX,
NEG,NEGA,ORA,ROL,ROLA,ROR,RORA,TST,TSTA,BRA,BSR,BCC,BCS,
BEQ,BNE,BHI,BLO,BLS,JMP,JSR,RTS,RTI,BCLR,BSET.
The AndMCU board simulates the following hardware components:
1) 8-Bit CPU with 3x 8-bit bi-directional ports.
2) 6 Digits display
3) 16-character LCD display
4) 2x 8-bit DIP Switches
5) 2x8 LED Bargraph displays
6) 12-key keypad
7) 1 piezo buzzer
8) External, Timer and Software Interrupts
9) 1 analog input (light sensor).
* Works with screen resolutions up to 1080x1920 (full-HD).
(This is not a fast CPU emulator - it's a simulator for educational purposes. See documentation on AndMCU's website for more details.)
This app is free, no ads, enjoy!
What's new in MCU Prototype Board Simulator 1.10
NOV.8,2015: FULL VERSION IS NOW FREE (NO ADS)Download MCU Prototype Board Simulator patch 1.10 APK
