Diagram Description

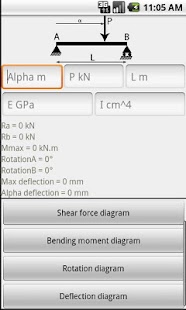

If you want to draw shear force, bending moment, rotation or deflection diagrams this app is made for you!Inputs are:
Loads
Beam span
Young's modulus
Inertia
Diagrams are available for:

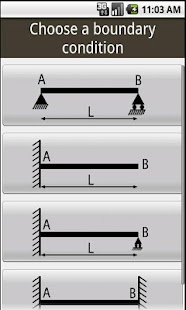

Simply supported beams
Cantilever beams
Cantilevers beams with reactions
Fixed beams
Under:
Concentrated load
Concentrated load at any point
Uniformly varying load
Two equidistant loads
Uniform load
Couple at any point
Couples at ends
Different couples at ends
and many others...
Young's modulus:
Stell E=210 GPA
Wood E=10 GPA
Concrete E= 20 to 50 GPA
Inertia of IPE 180 = 1317 cm^4
